Mittel-/Hochspannung schaltanlage
Verteiler schrank
Box Transformator Umspannwerk
Terminal box

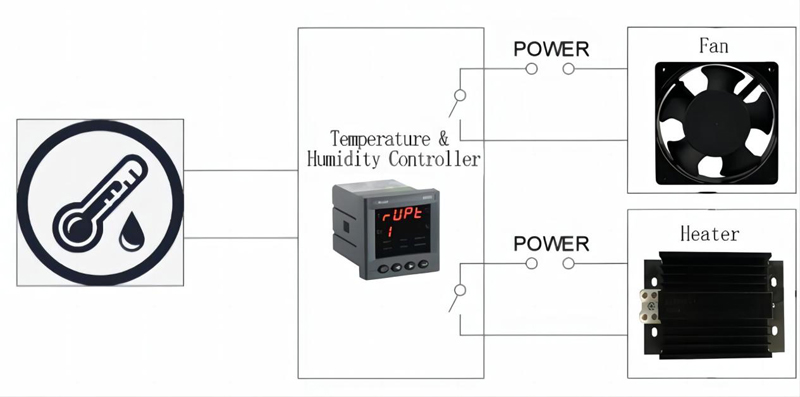

Struktur

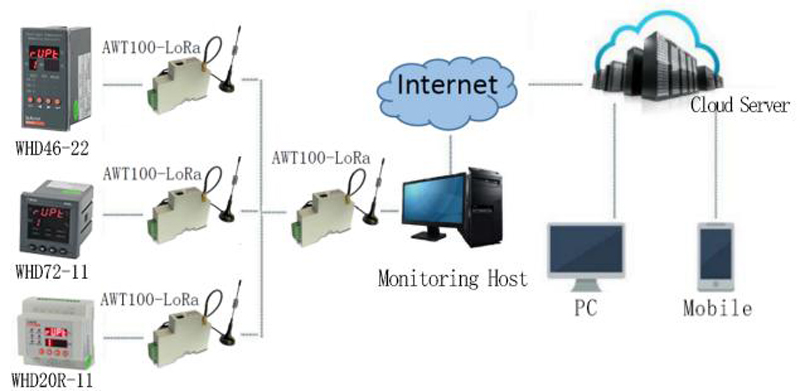

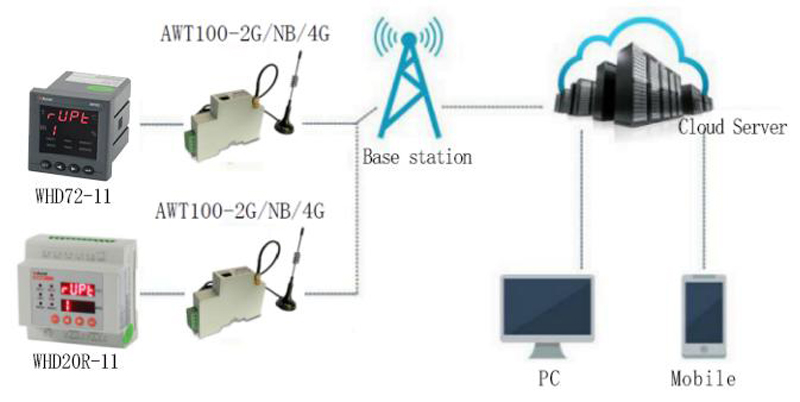

Stations basis
1. Automatische Heizung und Entfeuchtung
2. Kommunikation: RS485(Modbus-RTU)
3. Feuchtigkeit messbereich: 0-99% RH
4. Temperatur messbereich: -40 ° c ~ 99,9
5. Arbeits feuchtigkeit des Controllers: ≤ 95% RH
6. Arbeits temperatur des Controllers: -20 ° c ~ 60
7. LED-Anzeige
8. Analoge Ausgabe
9. Alarm

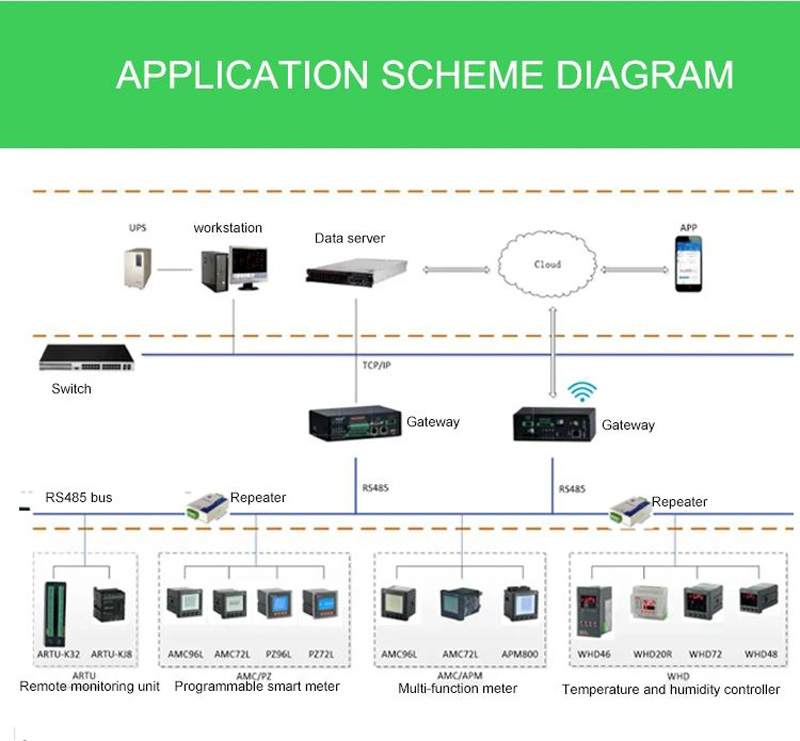

Anwendung
Typ
Funktionen
Temperatur-und Feuchtigkeit regler

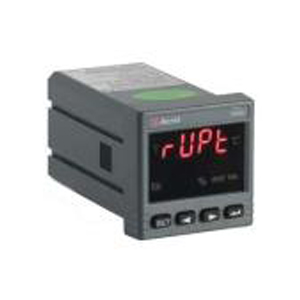

WHD48
Panel montiert
1 Kanal
RS485(Modbus-RTU)
LED-Anzeige
Temperatur ± 1 ° C
Luft feuchtigkeit ± 5% RH

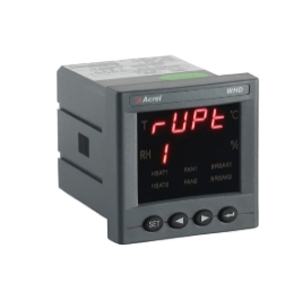

WHD72
2 Kanäle

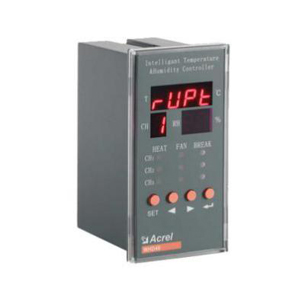

WHD46
3 Kanäle

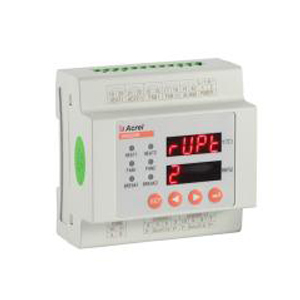

WHD20R
DIN-Schiene montiert
Heizung

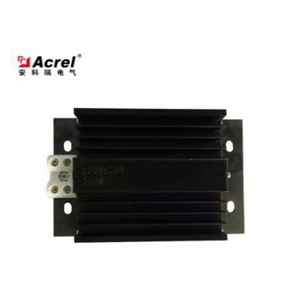

ALW-100W
Betriebs spannung: AC220V AC110V
Nennleistung: 50-300W
Isolation widerstand: ≥ 1000MΩ
Intelligentes Gateway

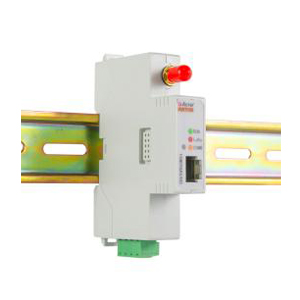

AWT100
Arbeitsdruck: DC24V orAC/DC220V
Baud Rate:4800bps, 9600bps, 19200bps, 38400bps
Kommunikation: RS485

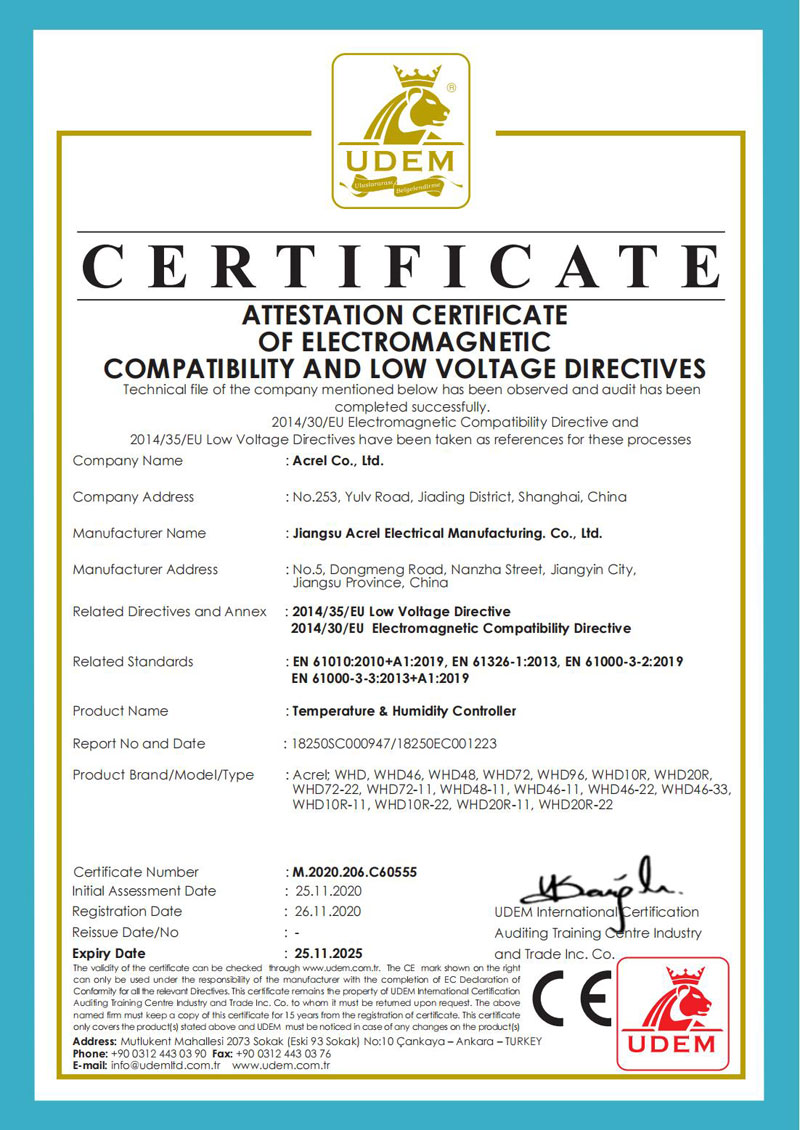

CE
